KMAS MK1

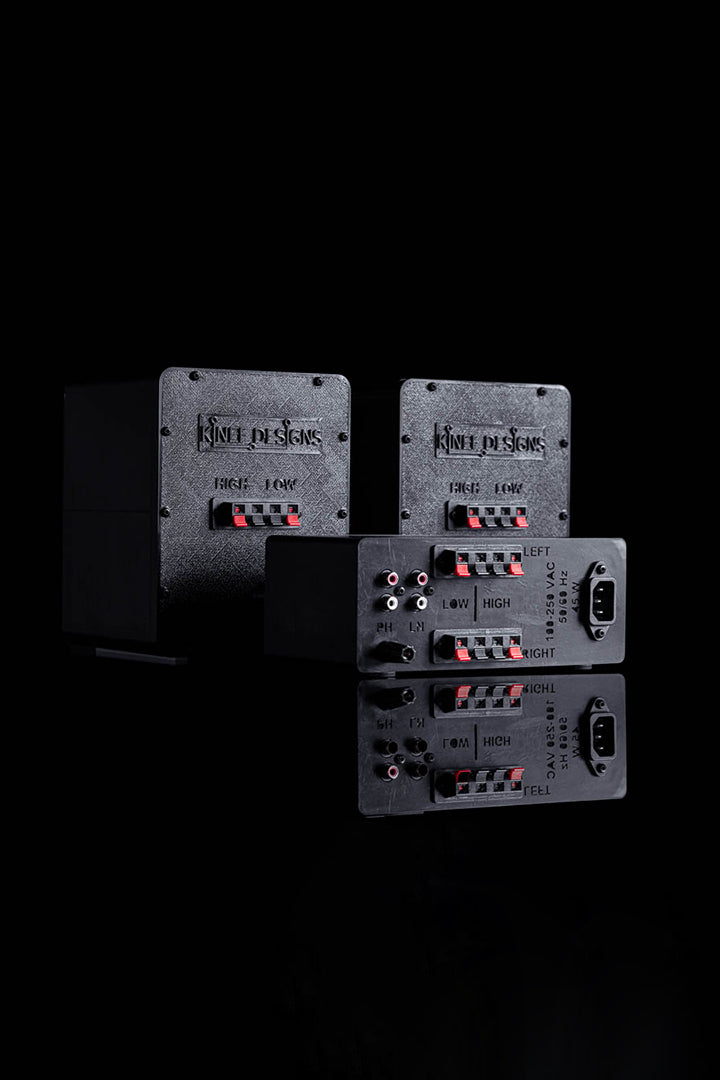

The KINEF MINI ACTIVE SPEAKERS MK1 is the 3D printed mini version of the KAS MK1.

Specifications:

1. Signal inputs
   • Line / Phone In (RCA connetor)
2. Power inputs
   • 100-250 VAC / 50-60 Hz / 45W
3. Outputs
   • Woofer: 10W
   • Tweeter: 8W
4. Features
   • Analog active crossover
   • Class-D amplifier stage
   • Old school power toggle switch (no standby power)
   • Front panel volume control + ON / OFF switch
   • Front panel power LED indicator
   • Front panel source select switch
5. Construction material
   • PETG
6. Dimensions (H – W – D)
   • Speaker + Stand
     • 217mm
     • 140mm
     • 179mm

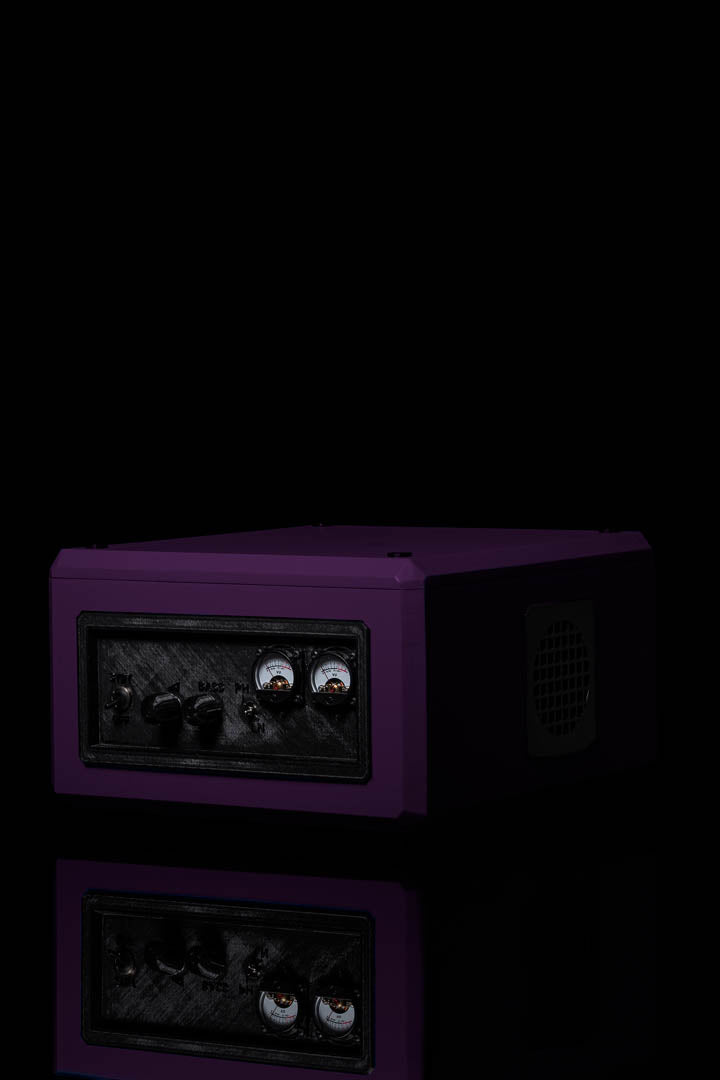

   • Amplifier
     • 78.5mm
     • 200mm
     • 107.5mm
7. Mass
   • Speaker + Stand
     • 1.2kg
   • Amplifier
     • 0.67kg
