KHA MK1

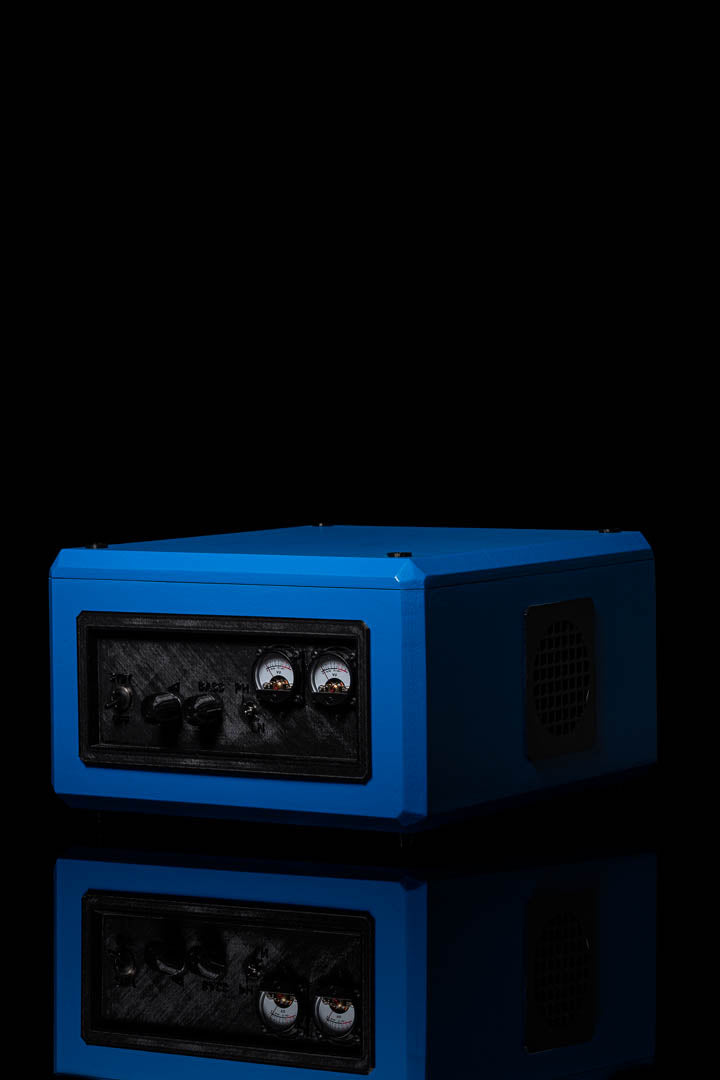

The KINEF HYBRID AMPLIFIER MK1 is a stereo hybrid amplifier that utilizes a vacuum tube pre-amplifier stage with a Class-D output power stage.

Specifications:

1. Signal inputs

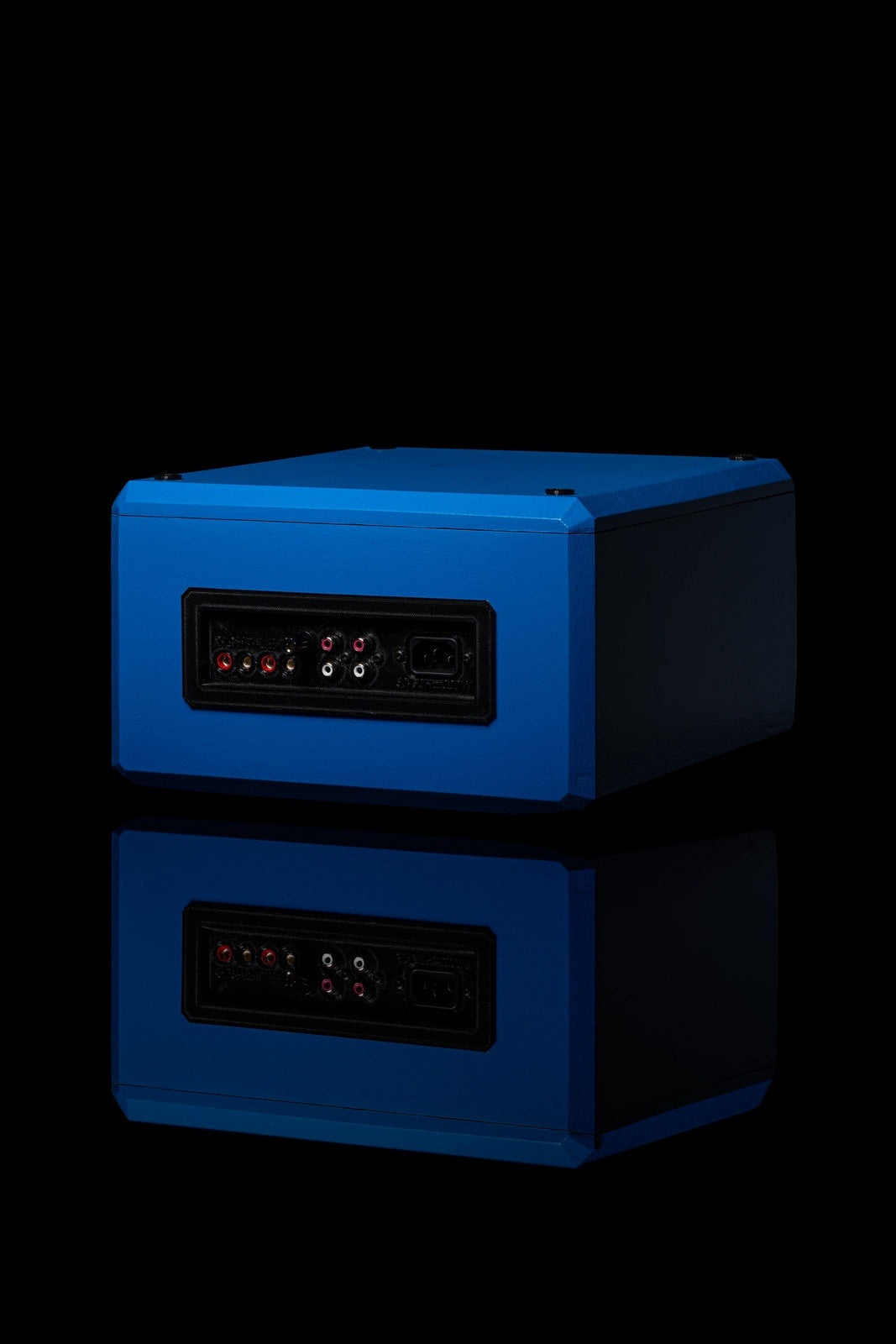

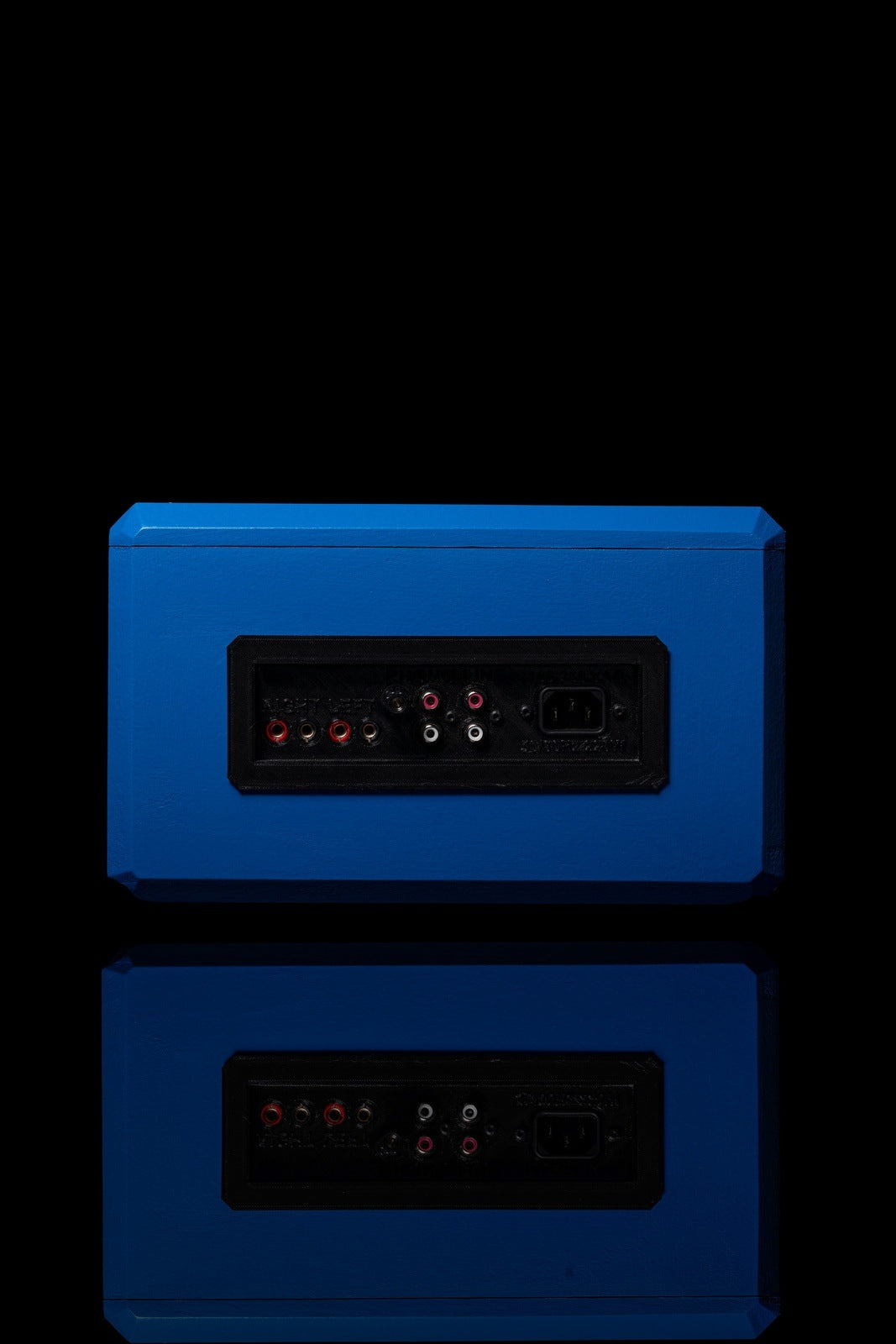

   • Line / Phone In (RCA connector)
2. Power inputs
   • 100-250 VAC / 50-60 Hz
3. Outputs
   • Power output per channel:
     • 100W into 4 ohm
     • 60W into 8 ohm
   • Differential Output
   • Dual banana jack connectors
4. Total Harmonic Distortion (THD):
   • 0.1% @ 65W into 4Ohm (20Hz / 1kHz / 6kHz)
   • 0.1% @ 35W into 8Ohm (20Hz / 1kHz / 6kHz)
5. Signal to Noise Ratio (SNR):
   • 100dB @ Maximum output (THD+N < 1% / f = 1 kHz / A-Weighted)
6. Features
   • Analog BASS shelf tone control
   • Class-D amplifier stage
   • Old school power toggle switch (no standby power)

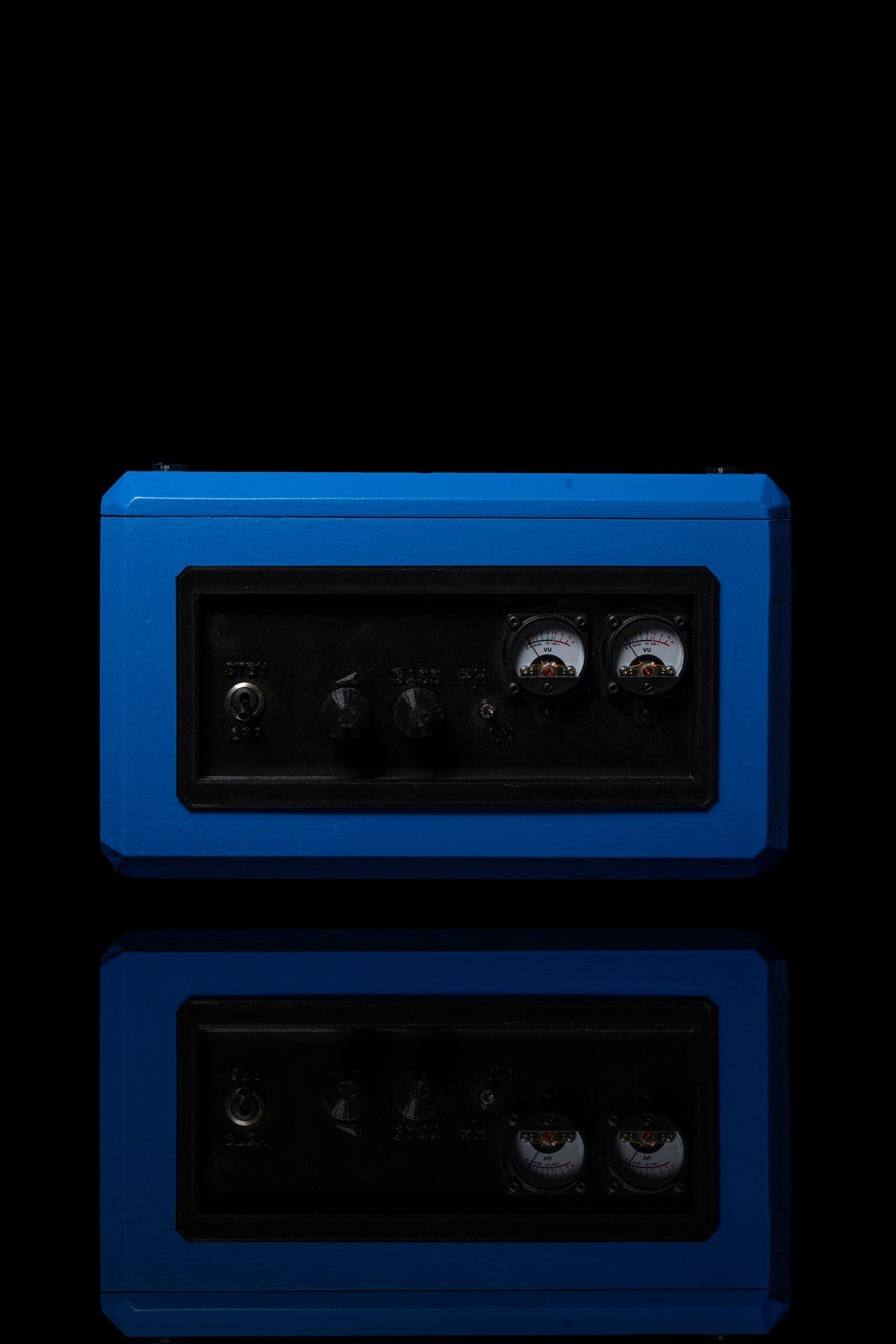

   • Front panel volume control + ON / OFF switch

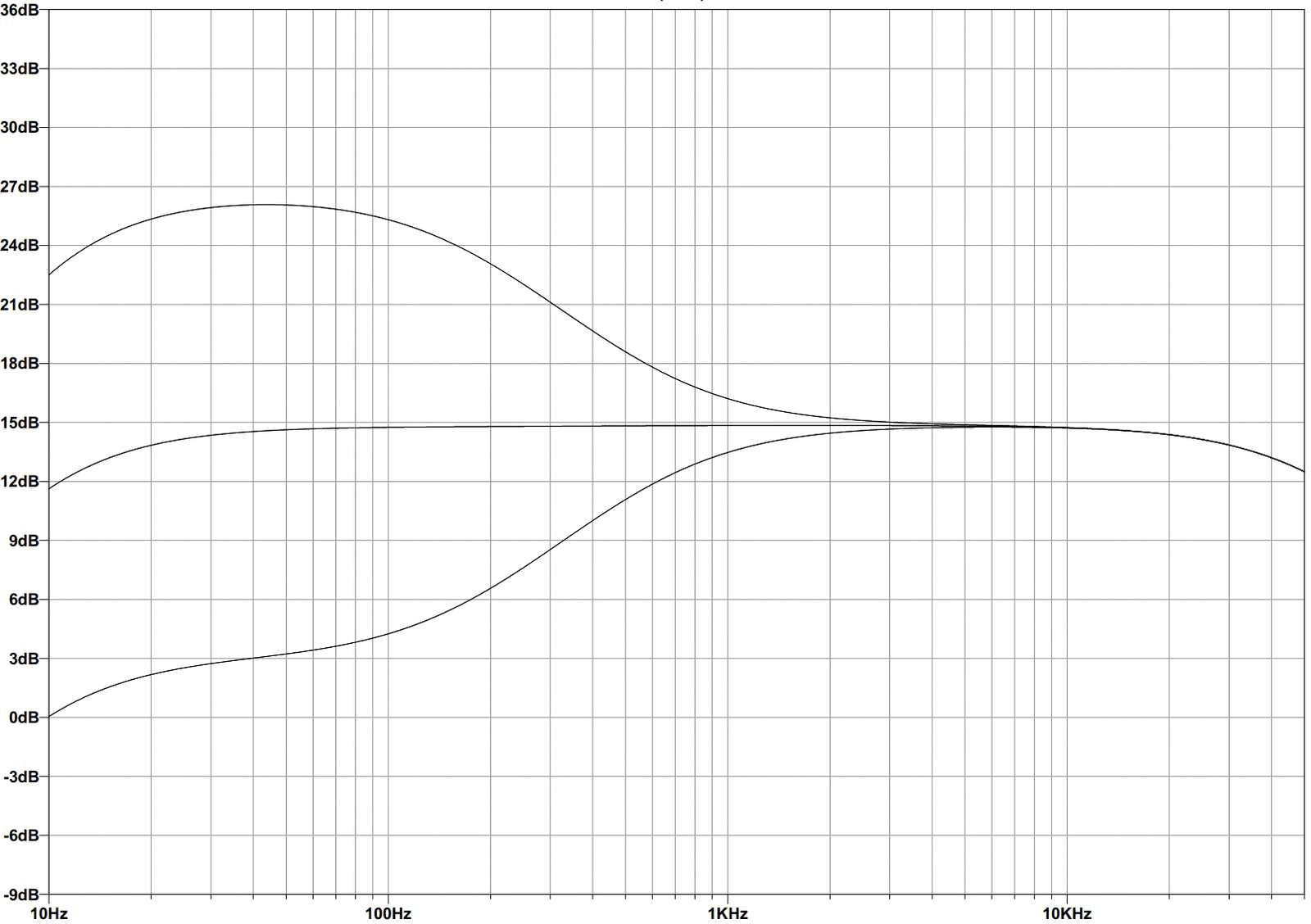

   • Front panel bass control: Low shelf filter @ +/- 3dB
   • Front panel stereo VU meter
   • Front panel stereo peak detector LEDs
   • Front panel source select switch
7. Construction material
   • MDF
   • PETG
8. Dimensions (W – H – D)
   • 325mm
   • 125mm
   • 325mm
9. Mass
   • 3.3kg
