KDAC MK2

The KINEF DAC MK2 is a ultra light USC-C DAC/Headphone Amp combo.

Meet your new favorite pocket-sized audio companion. Designed for creators, audiophiles, and minimalists alike. Whether you're deep into a late-night edit, kicking back with a record, or curating the vibe of your space, this little powerhouse delivers crisp, clean sound wherever you are.

Specifications:

1. Signal Inputs
   • Digital (USB-C connector)


2. Signal Outputs

   • Line Out (RCA connectors)
   • Headphone Out (6.35mm TRS connector)


3. Output Level
   • Line Out: Up to 2.1Vrms (into 1k Ohm load)
   • Headphone:


     Impedance (Ohm)	Output Power (mW) ±1%
     32	124
     35	113
     50	80
     65	62
     105	38
     110	37
     120	16
     300	13
     350	12
     470	9
     600	7

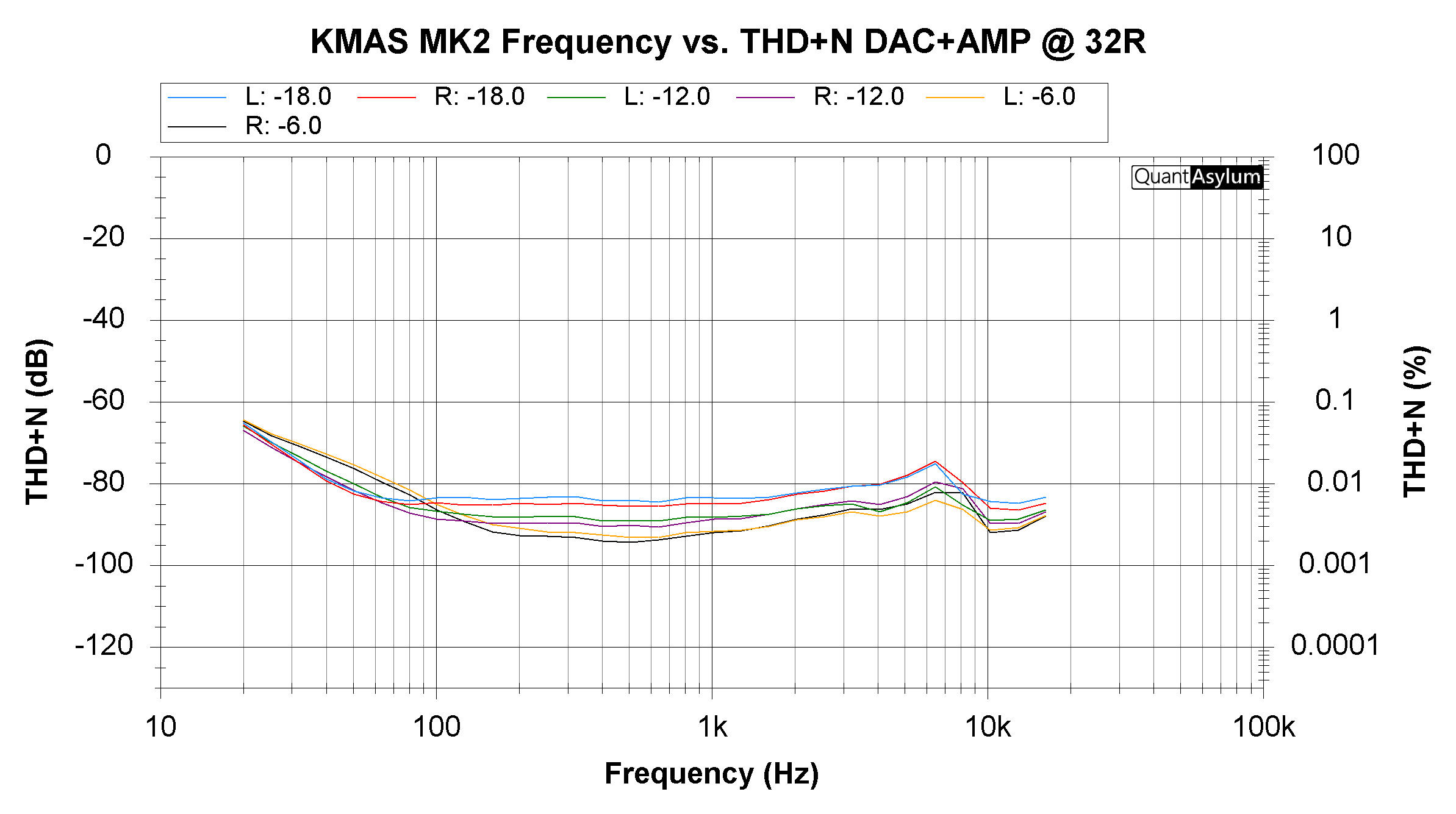

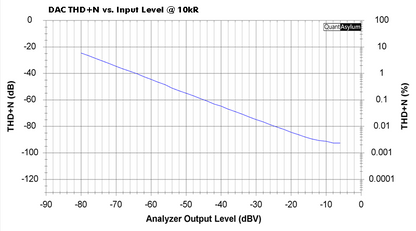

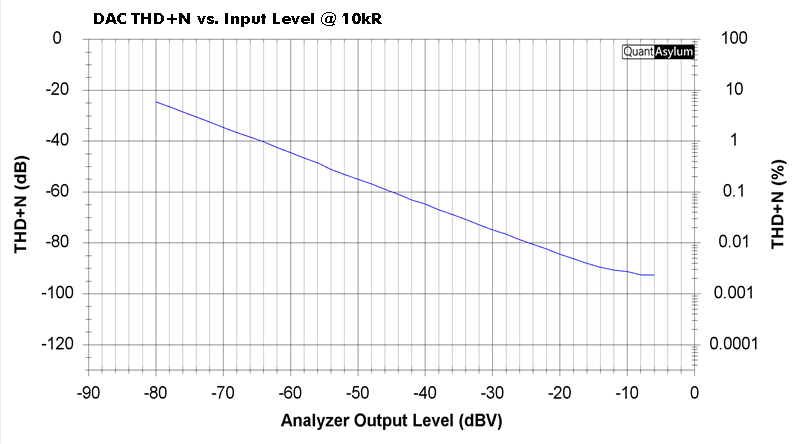

4. Total Harmonic Distortion + Noise (THD+N @ -6 dBV):
   • Line Out: <0.01% @ fs 96kHz
   • Headphone Out: <0.01%

5. Signal to Noise Ratio (SNR):
   • Line Out: 95dB @ fs 96kHz
   • Headphone Out: 95dB


6. DAC Resolution

   • 24bits


7. Sampling Frequency
   • 44.1kHz / 48kHz / 96kHz


8. Operation System Usability
   • Windows / MacOS / Linux


9. Power Input
   • 5VDC / 0.5A / 2.5W


10. Features
    • Old school DPDT switch for selecting between RCA or 6.35mm TRS


11. Construction material
    • PETG


12. Dimensions (W – H – D)
    • 72mm
    • 55mm
    • 72mm


13. Mass
    • 215g


14. What comes in the package
    • 1x DAC
