KDSP MK1

Meet the KDSP (Kinef DSP), a versatile and easily configurable Digital Signal Processor.

Designed for room correction, equalization or complex signal mixing, the KDSP is easily configurable through a Graphical User Interface, effortlessly integrated in any sound system thanks to its wide input-output configurations.

Product is available in four different configurations:

1. Balanced input (XLR) - Balanced output (XLR)

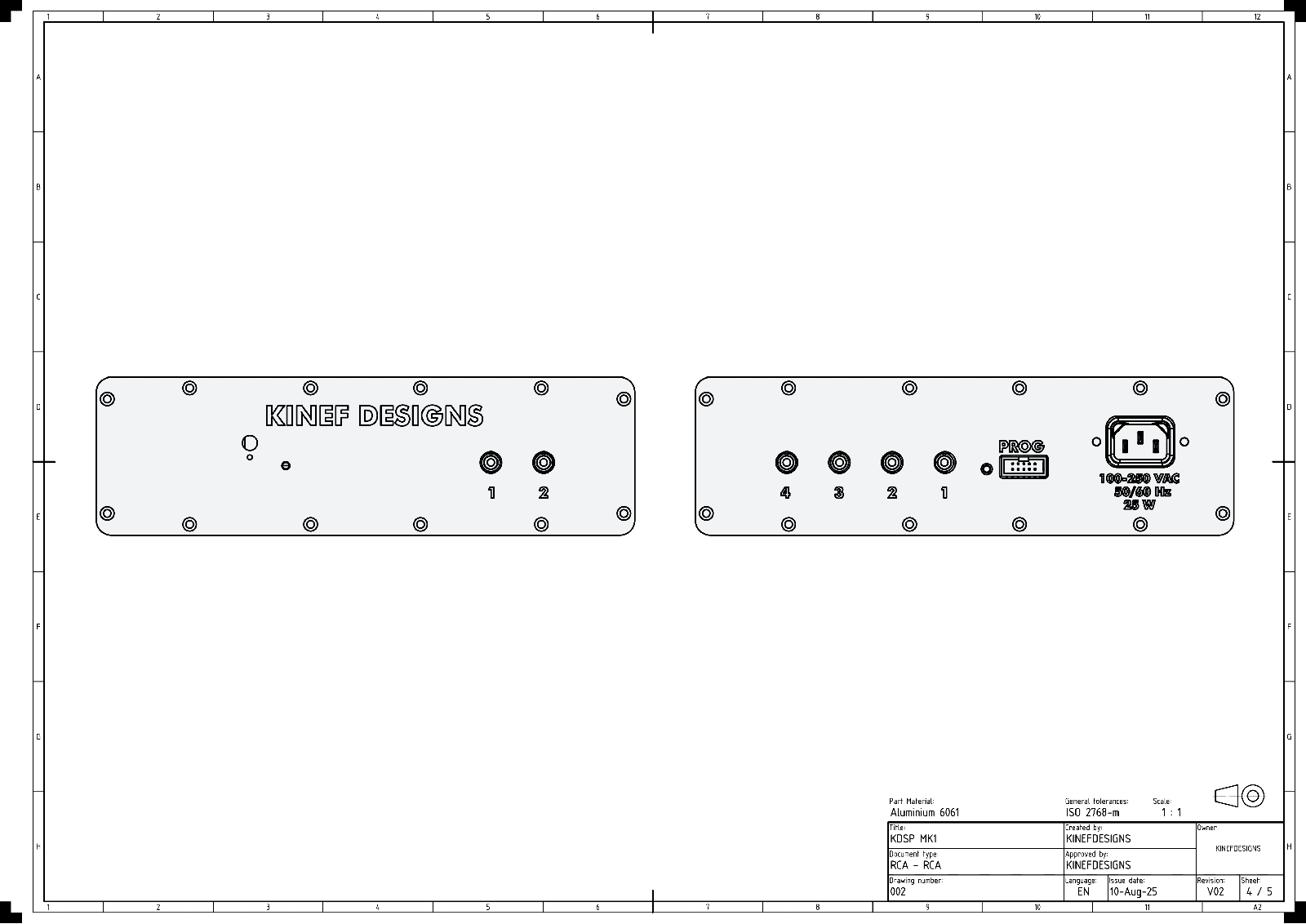

2. Unbalanced input (RCA) - Unbalanced output (RCA)

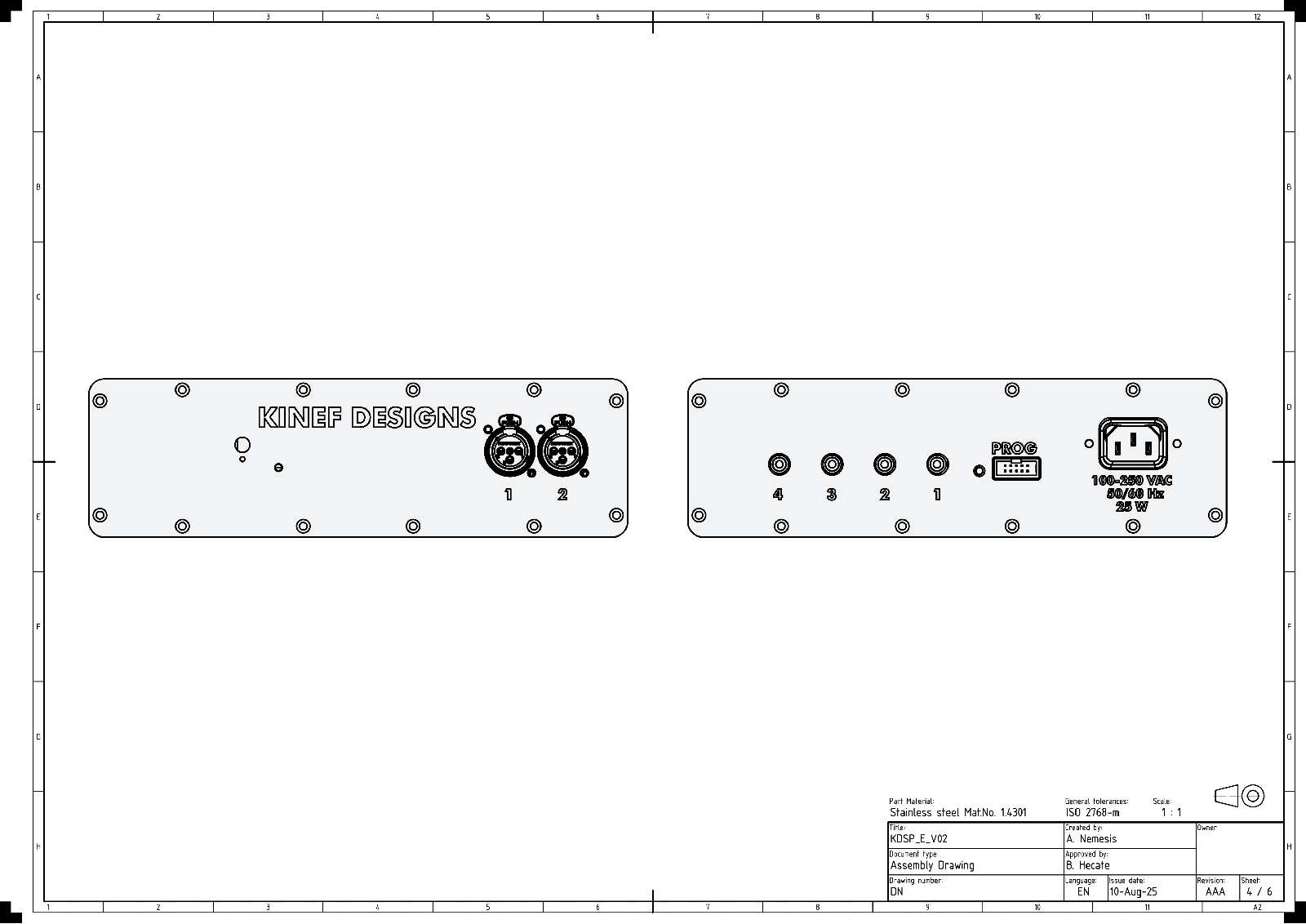

3. Balanced input (XLR) - Unbalanced output (RCA)

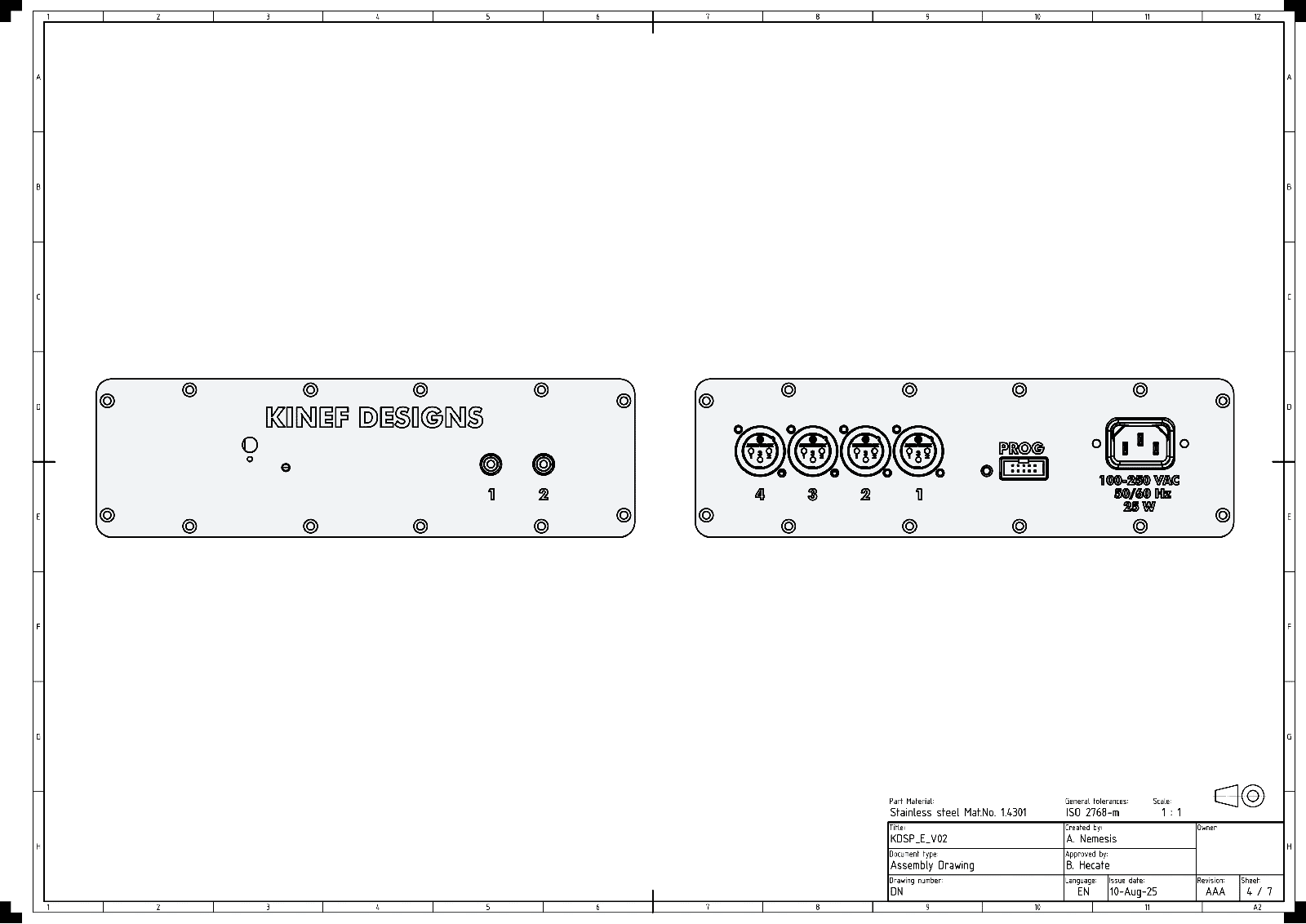

4. Unbalanced input (RCA) - Balanced output (XLR)

Specifications:

1. Signal input
   • Balanced @10kOhm

   • Unbalanced @10kOhm


2. Signal output
   • Balance @1kOhm
   • Unbalanced @10kOhm


3. DSP

   • 25 MIPS digital audio processor

   • Sample rate @96kHz
   • Bit depth @24bits
   • 2x ADC Σ-Δ
     • SNR 100 dB
     • THD + N −83 dB

   • 4x DAC Σ-Δ
     • SNR 104 dB
     • THD + N −90 dB


4. Power Inputs
   • Audio interface:
     • 100-250 VAC / 50-60 Hz / 15W


5. Features
   • Old school power toggle switch (no standby power)
   • Front panel power LED indicator


6. Construction material
   • ALUMINIUM


7. Dimensions (W – H – D)
   • Audio interface:
     • 242mm
     • 75mm
     • 155mm


8. Mass

   • 3kg


9. What comes in the package

   • 1x DSP

   • 1x 2m Power cord
