VENETA

The VENETA sound sytem combines the KBAS loudspeakers with KHUB audio interface in a single package.

While the loudspeaker's placement in your space will naturally influence its acoustics. It is strongly recommended to place them in a room larger than 130m³ (NOTE: cubic meters), following the recommended below stated placement guidelines, failing to do so, an additional DSP is required:

• Distance between speaker units: 2m to 6m (greater separation requires more angling toward the listening position).
• Distance between each speaker unit and the wall behind them: 30cm to 60cm.
• Distance between each speaker unit and the side wall: Minimum of 1m.
• Distance between the speaker units and the listening position: Minimum of 3m.
• Distance between listening position and the wall behind it: Minimum of 2m.

Specifications:

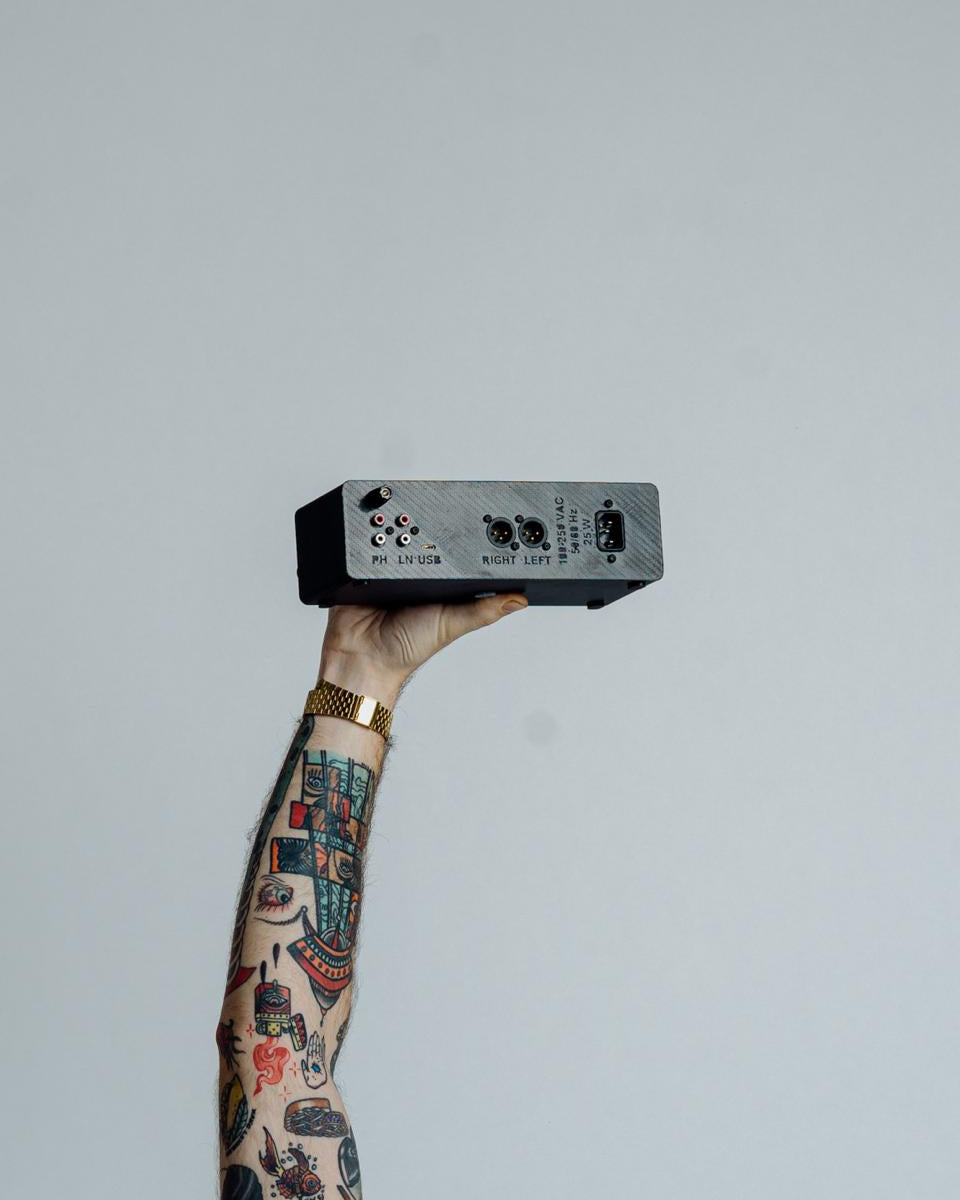

1. Signal input Audio interface
   • Line In @10kOhm
     • Stereo (RCA connector)
   • Phono In @47kOhm (MM)
     • Stereo (RCA connector)
   • USB @ 96kHz/24bit
     • USB-C connector
   • Bluetooth @ 48kHz/16bit


2. Signal output Audio interface
   • Balance Out
     • Stereo (Dual 3pin XLR connector)


3. Room correction:
   • Build in programable DSP


4. Signal input Loudspeakers
   • Balance In
     • Mono (Single 3pin XLR connector)


5. Power Inputs
   • Audio interface

     • 100-250 VAC / 50-60 Hz / 15W
   • Loudspeaker (per unit)
     • 100-250 VAC / 50-60 Hz / 180W


6. Power Outputs Loudspeaker
   • Woofer: 50W
   • Mid: 25W
   • Tweeter: 15W


7. Features

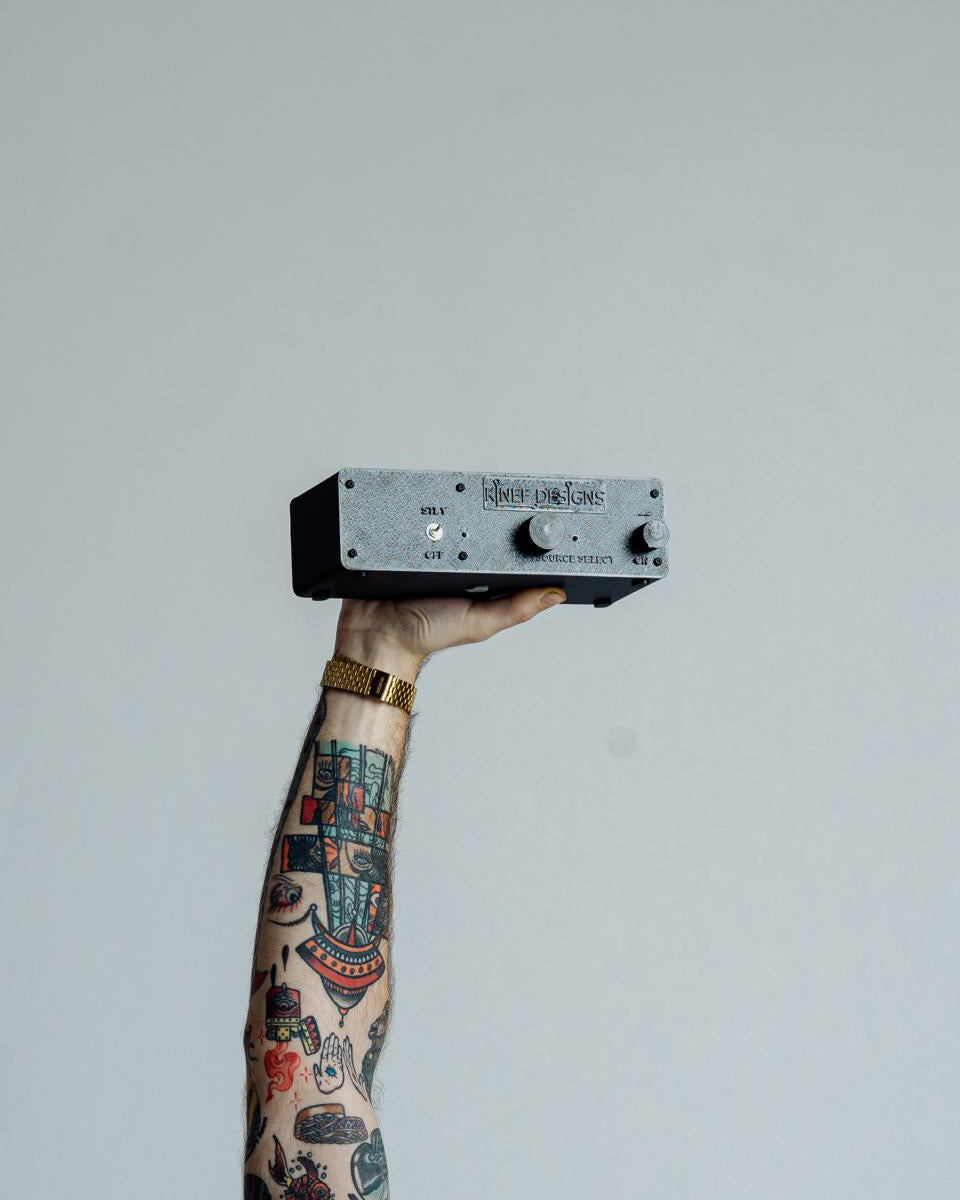

   • Audio interface

     • Old school power toggle switch (no standby power)
     • Front panel power LED indicator
     • Front panel source select switch
   • Loudspeaker

     • Analog active crossover
     • Class-D output power stage

     • Old school power toggle switch (no standby power)

     • Front panel power LED indicator


8. Construction material
   • Audio interface

     • ALUMINIUM
   • Loudspeaker

     • MDF
     • BIRCH PLYWOOD
     • PETG
     • ALUMINIUM
   • Loudspeaker stand
     • MDF
     • MAHOGANY VENEER


9. Dimensions (W – H – D)
   • Loudspeaker enclosure
     • 436mm
     • 666mm
     • 571mm

   • Loudspeaker stand
     • 380mm
     • 200mm
     • 609mm
   • Audio interface
     • 242mm
     • 75mm
     • 155mm


10. Mass per unit
    • Loudspeaker enclosure (per unit)

      • 30kg
    • Loudspeaker stand (per unit)
      • 3kg
    • Audio interface
      • 1kg


11. What comes in the package

    • 1x Audio interface

    • 2x Loudspeakers

    • 2x Loudspeaker stand
    • 3x 2m Power cord
    • 2x 3m XLR 3-pin cables
