KAS MK1

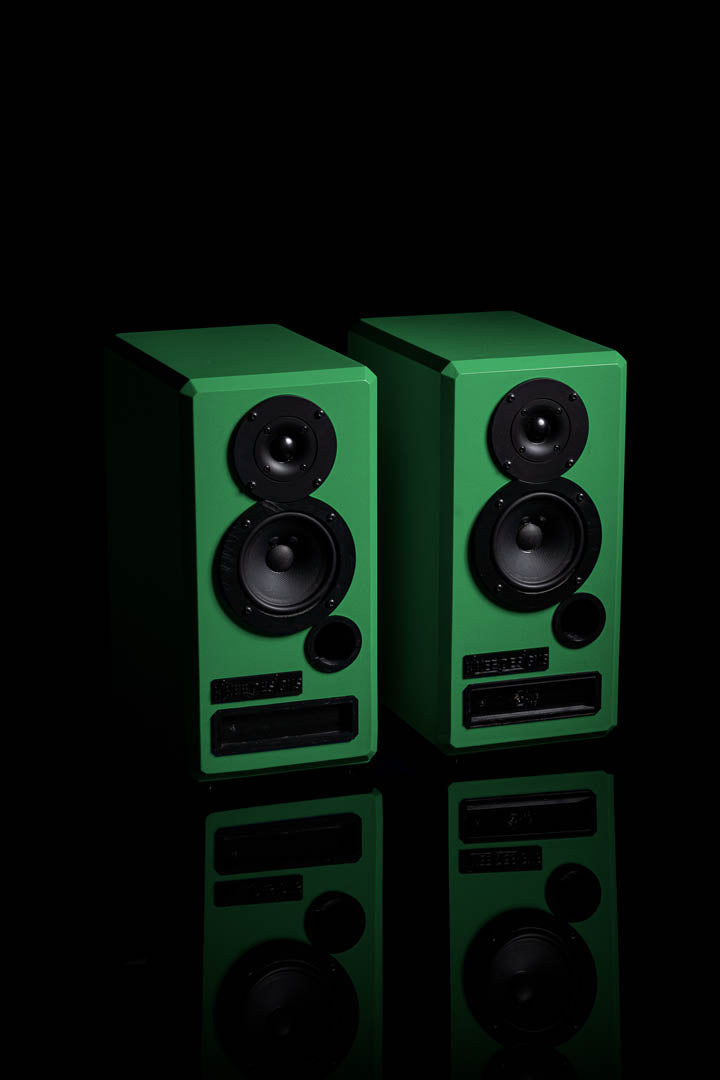

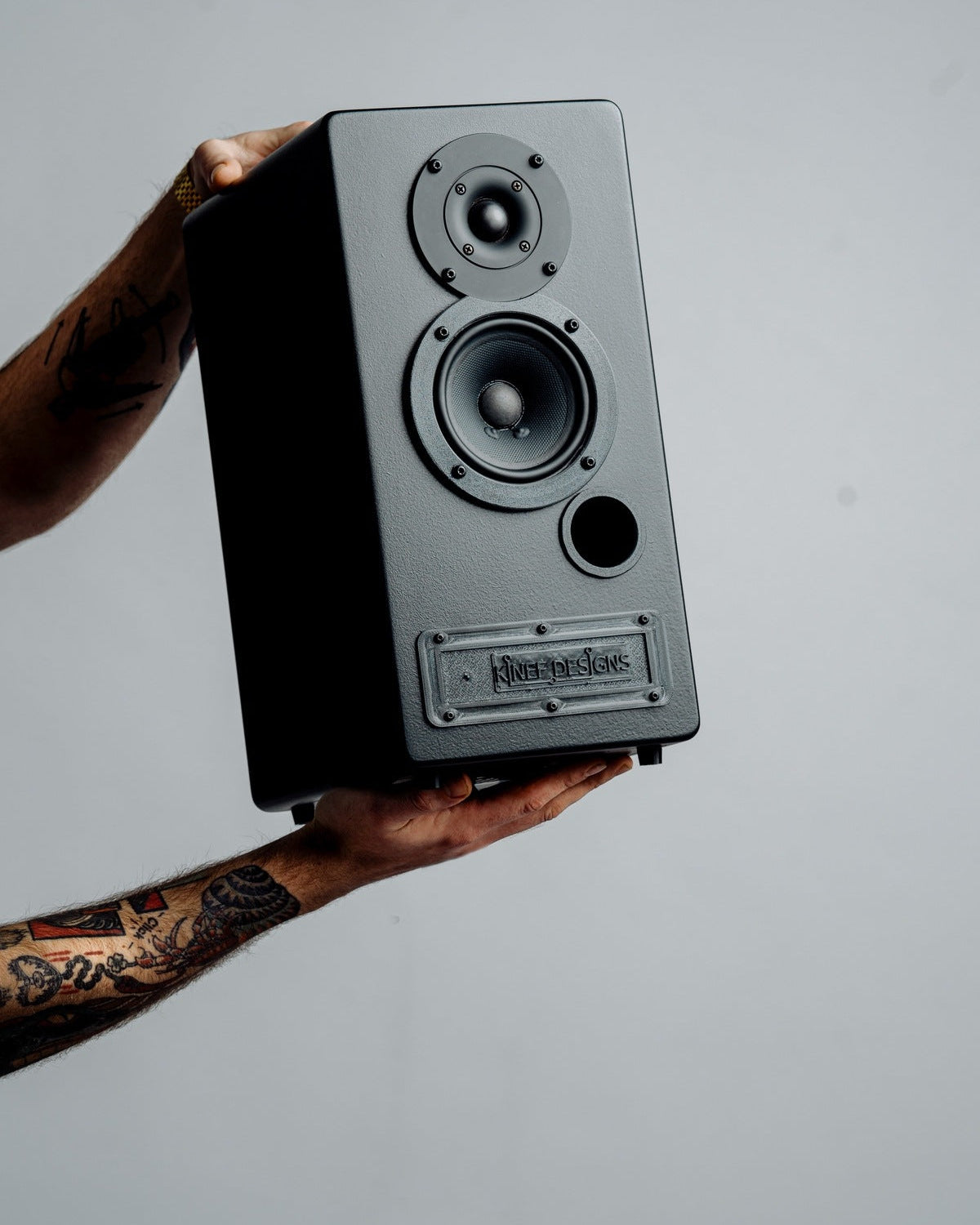

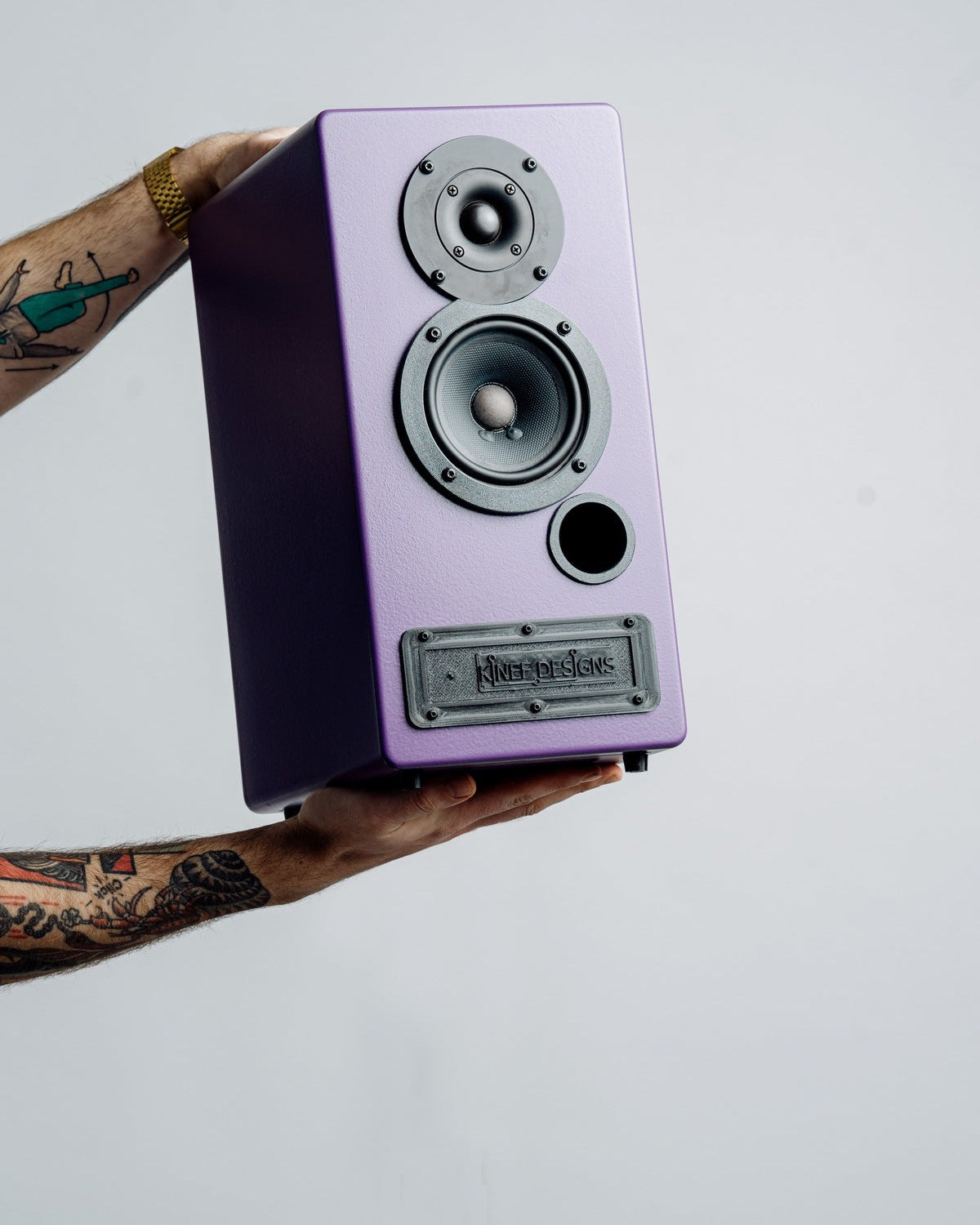

KINEF ACTIVE SPAKER MK1 is a stereo set of two way active speakers with extensive and easily selectable input sources.

Speaker combination can be:

1. MS: Right speaker acts as master and left one as slave. Only an XLR cable interconnects them.
2. DS: Both speakers act as slave, thus an external audio interface/sound card.

Specifications:

1. Signal inputs
   • Line In @10kOhm
   • Stereo (RCA connector) with MS configuration
   • Mono (TS connector) with DS configuration
   • USB 96kHz/24bit (USB-C connector)
   • Only available with MS configuration
   • Bluetooth 4.2 48kHz/16bit
   • Only available with MS configuration
2. Power inputs
   • 100-250 VAC / 50-60 Hz / 75W
3. Outputs
   • Woofer: 25W
   • Tweeter: 15W
4. Features
   • Analog active crossover
   • Class-D output power stage
   • Old school power toggle switch (no standby power)
   • Front panel power LED indicator
   • Front panel source select switch
5. Construction material
   • MDF
   • PETG
6. Dimensions (W – H – D)
   • 380mm
   • 195mm
   • 285mm
7. Mass per unit
   • 7.1kg
