PANDORA

The KINEF MINI ACTIVE SPEAKERS, code name Pandora's Box, is the 3D printed mini version of the KAS.

The PANDORA is the ideal music producer companion for on the go, packs a punch despite its small form factor, the combination of 3" and 1" drivers alow for a smooth crossover region, regardless of being a near field monitor. Perfect for those inspiring nights in the hotel.

The acoustic enclosure is an experimental introduction to 3D priting, where the right resonance is achieved through a combination of wall thinkness, infill % and infill patern, which allows for a total setup weight of 3.5kg (7.72lb), easily fitting in a backpack.

Nevertheless, we still live in a world bound by physics, the KMAS's low-end performance cannot be directly compared to the fuller output of the KAS or KBAS.

Specifications:

1. Signal inputs
   • Line In @10kOhm
     • Stereo RCA connector
   • Phono In
     • Stereo RCA connector


2. Power inputs
   • 100-250 VAC / 50-60 Hz / 45W


3. Power Outputs
   • Woofer: 10W
   • Tweeter: 8W


4. Features
   • Analog active crossover
   • Class-D amplifier stage
   • Old school power toggle switch (no standby power)

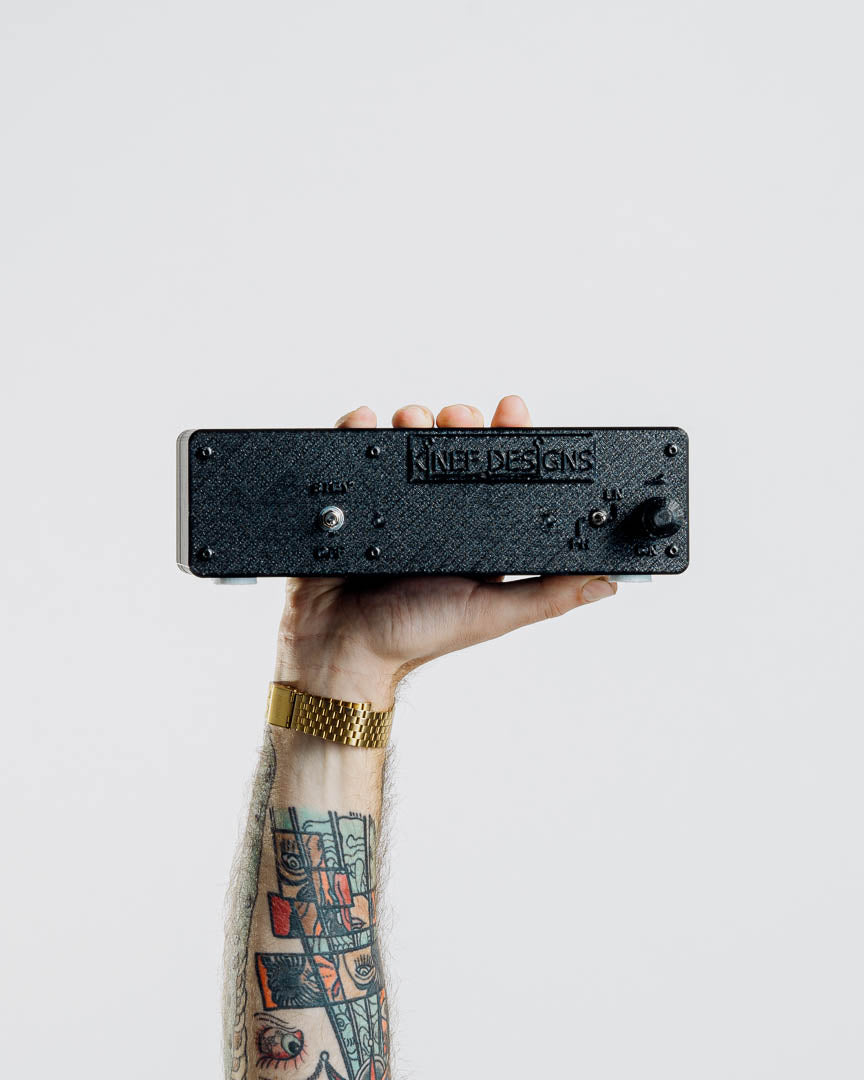

   • Front panel volume control + ON / OFF switch
   • Front panel power LED indicator
   • Front panel source select switch

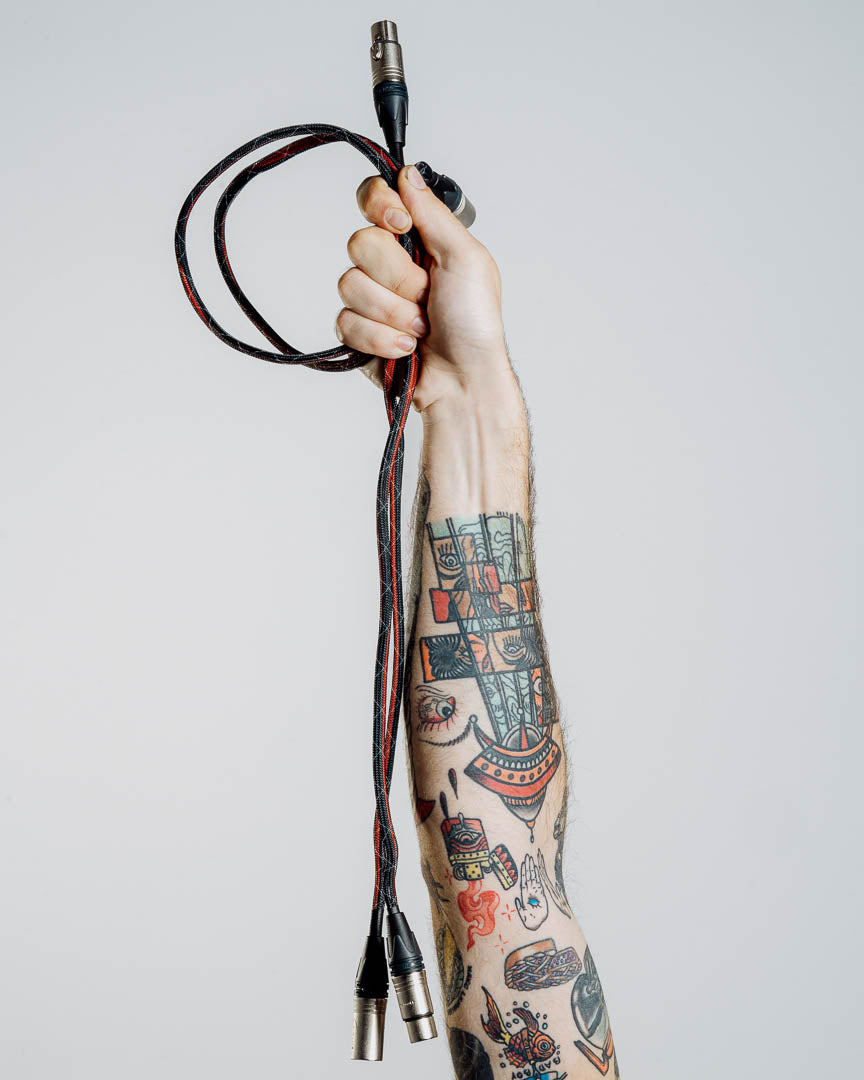

   • Braded speaker XLR 4-pin speaker cables


5. Construction material
   • PETG


6. Dimensions (H – W – D)

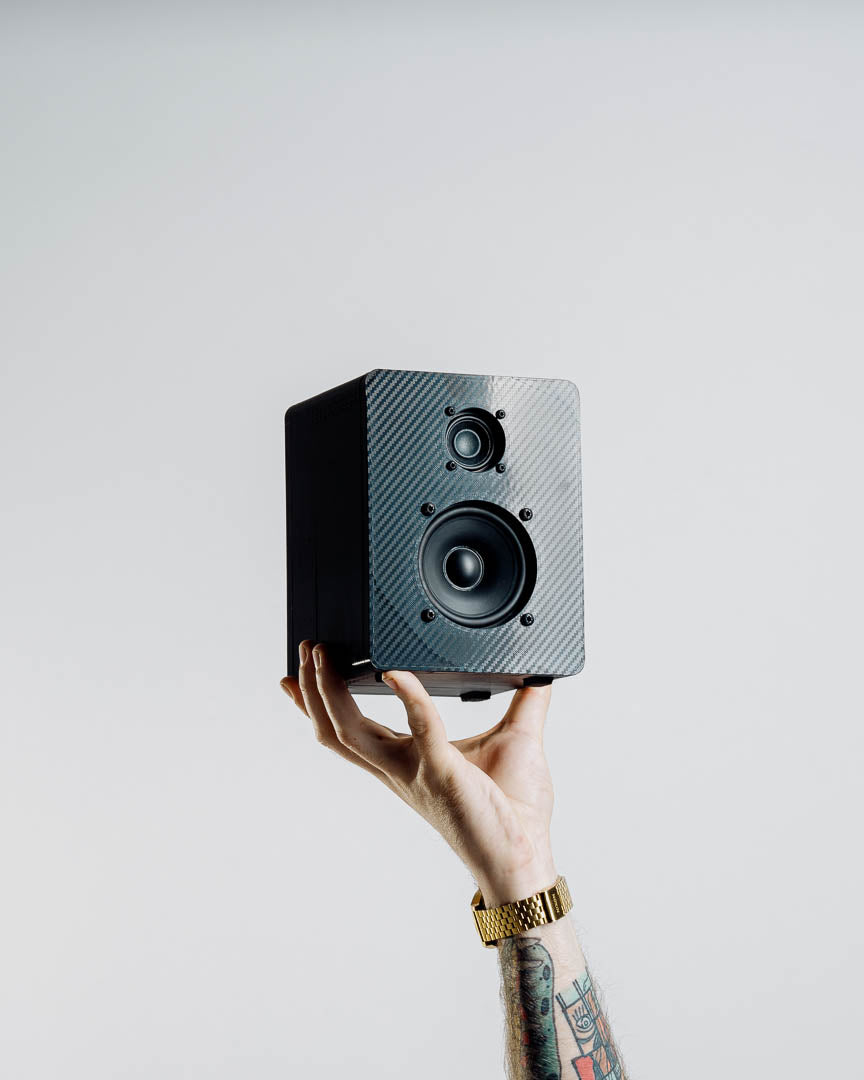

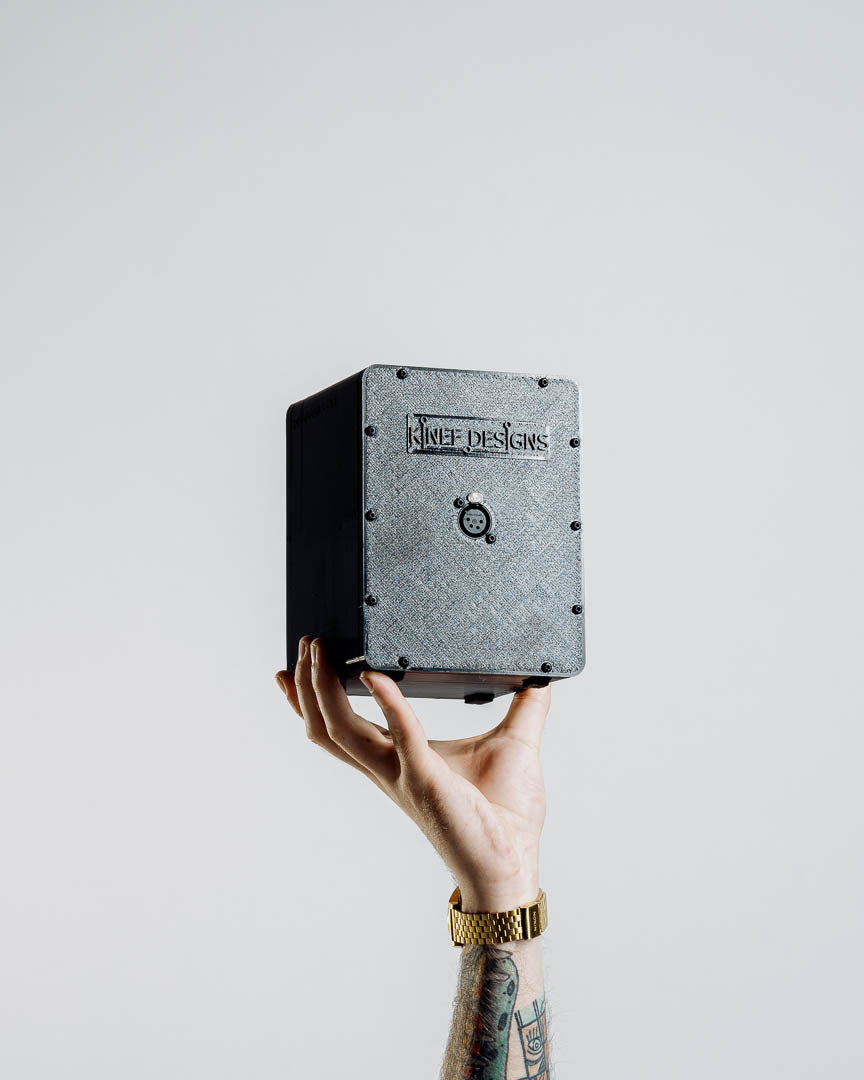

   • Speaker + Stand
     • 217mm
     • 140mm
     • 179mm

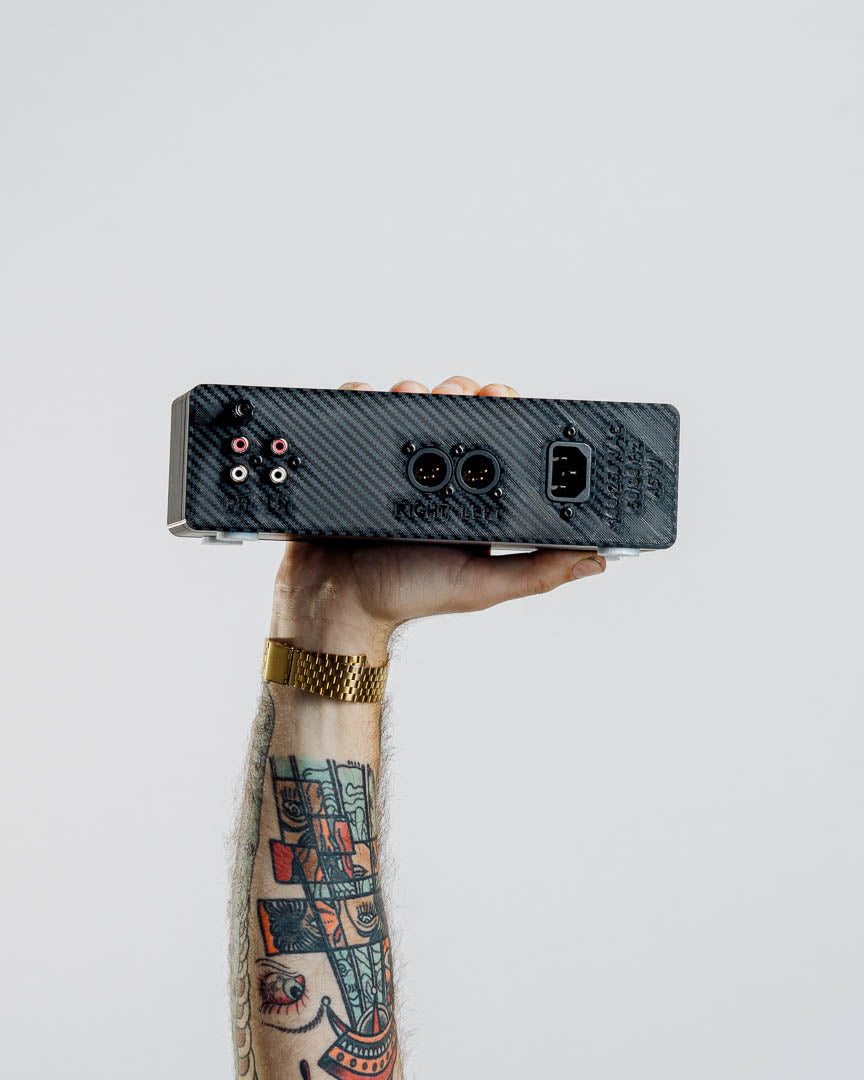

   • Amplifier
     • 78.5mm
     • 200mm
     • 107.5mm


7. Mass
   • Speaker + Stand
     • 1.2kg
   • Amplifier
     • 0.67kg


8. What comes in the package
   • 1x Amplifier/Audio interface

   • 2x Speaker
   • 2x Speaker Stand
   • 1x Power cord
   • 2x Speaker cables
