PUMPKIN

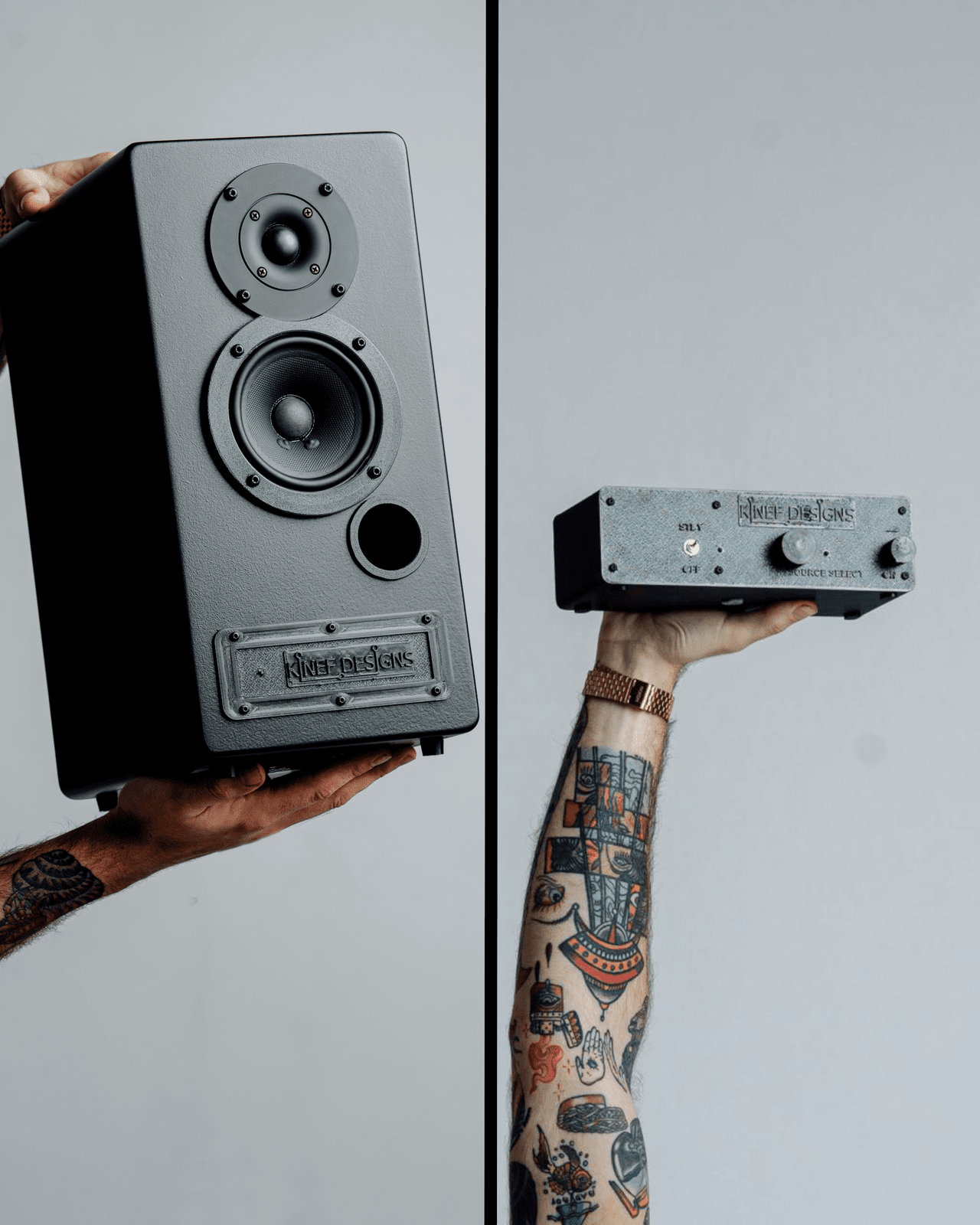

The PUMPKIN sound sytem combines the KAS loudspeakers with KHUB audio interface in a single package.

While the loudspeaker's placement in your space will naturally influence its acoustics. It is strongly recommended to place them in a room larger than 80m³ (NOTE: cubic meters), following the recommended below stated placement guidelines, failing to do so, an additional DSP is required:

• Distance between speaker units: 2m to 4m (greater separation requires more angling toward the listening position).
• Distance between each speaker unit and the wall behind them: 30cm to 60cm.
• Distance between each speaker unit and the side wall: Minimum of 1m.
• Distance between the speaker units and the listening position: Minimum of 2m.
• Distance between listening position and the wall behind it: Minimum of 2m.

Specifications:

1. Signal input Audio interface
   • Line In @10kOhm
     • Stereo (RCA connector)
   • Phono In @47kOhm (MM)
     • Stereo (RCA connector)
   • USB @ 96kHz/24bit
     • USB-C connector
   • Bluetooth @ 48kHz/16bit


2. Signal output Audio interface
   • Balance Out
     • Stereo (Dual 3pin XLR connector)


3. Room correction:
   • Build in programable DSP


4. Signal input Loudspeaker (signle unit):
   • Balance In
     • Mono (Single 3pin XLR connector)


5. Power Inputs
   • Audio interface:
     • 100-250 VAC / 50-60 Hz / 15W
   • Loudspeaker (signle unit):
     • 100-250 VAC / 50-60 Hz / 75W


6. Power Outputs Loudspeaker (signle unit):
   • Woofer: 25W
   • Tweeter: 15W


7. Features
   • Audio interface:
     • Old school power toggle switch (no standby power)
     • Front panel power LED indicator
     • Front panel source select switch
   • Loudspeaker:
     • Analog active crossover
     • Class-D output power stage

     • Old school power toggle switch (no standby power)

     • Front panel power LED indicator


8. Construction material
   • Audio interface:
     • ALUMINIUM
   • Loudspeaker:
     • MDF
     • BIRCH PLYWOOD
     • PETG

     • NYLON PA11


9. Dimensions (W – H – D)
   • Loudspeaker:
     • 380mm
     • 195mm
     • 285mm
   • Audio interface:
     • 242mm
     • 75mm
     • 155mm

10. Mass
    • Loudspeaker (signle unit): 7.5kg

    • Audio interface: 1kg


11. What comes in the package
    • 1x Audio interface

    • 2x Loudspeakers

    • 3x 2m Power cord
    • 2x 3m XLR 3-pin cables
